The Eye Weave Lattice MDF-on-PET Acoustic Wall Panel translates interlocking almond-shaped MDF bands forming repeating eye-like openings into a practical decorative acoustic wall system. Its key visual result is a dense woven screen appearance with high contrast between the decorative MDF layer and the acoustic backing. Instead of relying on a printed surface to create the pattern, the foreground is formed from real MDF components machined by CNC equipment, while the polyester fiber substrate remains visible in the negative spaces. This two-layer relationship gives the wall depth, shadow and material contrast while retaining the acoustic function of the PET backing. This page is positioned around visual identity and repeat control. The product is intended for interior projects where the acoustic layer must become part of the architectural language rather than disappear behind a generic finish.
• Pattern identity: the Eye Weave Lattice geometry is immediately distinguishable from standard straight-slat acoustic panels and can be used as a project-specific visual signature.
• CNC repeatability: opening width, weave density, horizontal repeat and border treatment can be adjusted in the CAD path and then reproduced consistently for batch manufacturing.
• Layered appearance: the MDF decorative face creates the foreground, while exposed polyester fiber becomes an intentional background rather than a hidden substrate.
• Dimension flexibility: finished size is determined by the pattern and wall design instead of one fixed stock format, making the series suitable for square, tall, rectangular and irregular modules.
• B2B project workflow: drawings, sample approval, pattern direction and module numbering can be confirmed before bulk production to reduce installation ambiguity.
The upper decorative layer starts from MDF sheet material and is processed on a CNC engraving/routing machine from the approved CAD path. The cut pieces are then positioned over the polyester fiber substrate to form the final motif. CNC production is particularly useful for this pattern because line direction, repeat pitch and corner geometry can be controlled consistently across a batch.
For the Eye Weave Lattice MDF-on-PET Acoustic Wall Panel, the manufacturing review should focus specifically on opening width, weave density, horizontal repeat and border treatment. These are the variables most likely to change the visual character of this model. Where narrow bridges, small corners or pointed components occur, the drawing should be checked for practical CNC machining and handling before a production quantity is released.
|
Product Name |
Eye Weave Lattice MDF-on-PET Acoustic Wall Panel |
|
Core Keyword |
Eye Weave Lattice |
|
Construction |
Polyester fiber acoustic substrate + CNC-machined MDF decorative layer |
|
PET Substrate Thickness |
5 mm / 9 mm standard |
|
MDF Thickness |
9 mm standard; other thicknesses customizable |
|
Reference Format |

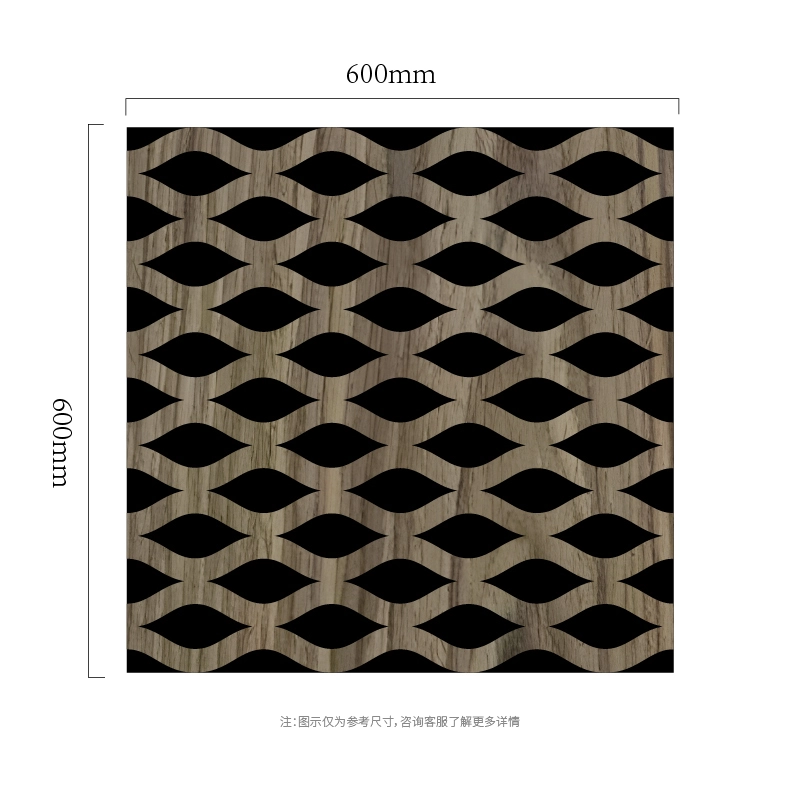

600 × 600 mm reference module |
|
Finished Size |
Customized according to confirmed pattern drawing and project dimensions |
|
Pattern Process |
Professional CNC engraving / routing / cutting based on designer-approved path |
|
Geometry Options |
Project adjustments may include opening width, weave density, horizontal repeat and border treatment |
|
MOQ |
400 pieces per design/model |
|
Project Documentation |
CAD/vector file or approved shop drawing recommended before mass production |
|
Performance Data |
Use verified acoustic/fire/environmental certificates where the project specification requires numerical values |
The Eye Weave Lattice MDF-on-PET Acoustic Wall Panel is suited to retail fitting rooms, fashion showrooms, club lounges, restaurant partitions and decorative wall niches. Because the MDF layer sits in front of the PET substrate, lighting and viewing distance materially affect the appearance. Side light increases shadow depth at the cut edges, while diffuse front light produces a flatter graphic effect. For large walls, module rotation and seam planning should be shown in an elevation before ordering.
The most important planning point for this model is the eye weave lattice rhythm. Designers should decide whether the pattern will repeat identically, mirror around a centerline, rotate between modules or terminate as an irregular feature. That decision should be reflected in the shop drawing so the final wall looks intentional rather than assembled from unrelated panels.
Use the Eye Weave Lattice behind a product display where the wall needs a recognizable texture but should not compete with merchandise. The repeated almond openings create a woven effect that can be read from both close and medium viewing distances. Keeping the merchandise fixtures simple allows the patterned layer to act as the visual backdrop.
This scenario is a design recommendation rather than a claim of a completed SHIPO project. For website publication, it can later be replaced by a verified customer case, installation photograph, country/market information and measurable project data when those materials are available.
The Eye Weave Lattice MDF-on-PET Acoustic Wall Panel can be developed from a standard reference pattern or adapted around project requirements. The primary customization variables for this design are opening width, weave density, horizontal repeat and border treatment. Standard polyester fiber substrate thicknesses are 5 mm and 9 mm, while the MDF decorative layer is normally 9 mm and can be produced in other thicknesses when required. Finished panel dimensions are not restricted to the reference drawing: SHIPO can review wall dimensions, required module divisions and pattern terminations before confirming the production file. As a China acoustic panel Supplier, Factory and Manufacturer, SHIPO is positioned for bulk B2B orders, with a minimum order quantity of 400 pieces per design.
• Send the wall elevation, target finished size and preferred product reference.
• Confirm the Eye Weave Lattice pattern scale and the project-specific variables: opening width, weave density, horizontal repeat and border treatment.
• Confirm PET substrate thickness (5 or 9 mm), MDF thickness (9 mm standard or custom) and the approved MDF surface/finish sample.
• Approve the CAD/shop drawing and, when necessary, one physical sample before batch manufacturing.
• For directional or multi-module designs, use panel numbers and orientation marks to support site installation.
Yes. The eye-shaped void width can be increased by reducing the MDF band width. The final path should still keep sufficient material at crossing points for handling.
Yes. A square module allows multiple orientations. For a large wall, rotation can produce secondary diamond rhythms, but the installation plan should define the sequence.
The MDF finish should be maintained according to the confirmed surface treatment. For deep openings, use a soft brush or low-suction vacuum attachment rather than abrasive tools.
Contact SHIPO for samples, drawing review, size customization or a bulk quotation for the Eye Weave Lattice MDF-on-PET Acoustic Wall Panel. To receive an accurate proposal, send the target wall dimensions, required quantity, PET substrate thickness, MDF thickness, preferred finish, and any CAD/vector pattern file available. SHIPO can then evaluate the Eye Weave Lattice geometry, confirm manufacturable details and prepare the production solution for orders from 400 pieces per design.
