The Clover Chain Modular MDF-on-PET Acoustic Wall Panel translates rounded clover-like MDF elements linked in a repeating vertical and horizontal chain into a practical decorative acoustic wall system. Its key visual result is a soft ornamental lattice with broad wood surfaces and distinct dark joints. Instead of relying on a printed surface to create the pattern, the foreground is formed from real MDF components machined by CNC equipment, while the polyester fiber substrate remains visible in the negative spaces. This two-layer relationship gives the wall depth, shadow and material contrast while retaining the acoustic function of the PET backing. For procurement teams, the key advantage of this design is that the visual pattern is generated from a controlled digital path. Once the sample and drawing are approved, the same geometry can be reproduced for batch orders with project-specific dimensions.
• Pattern identity: the Clover Chain Modular geometry is immediately distinguishable from standard straight-slat acoustic panels and can be used as a project-specific visual signature.
• CNC repeatability: clover scale, joint thickness, row offset and headboard-specific panel height can be adjusted in the CAD path and then reproduced consistently for batch manufacturing.
• Layered appearance: the MDF decorative face creates the foreground, while exposed polyester fiber becomes an intentional background rather than a hidden substrate.
• Dimension flexibility: finished size is determined by the pattern and wall design instead of one fixed stock format, making the series suitable for square, tall, rectangular and irregular modules.
• B2B project workflow: drawings, sample approval, pattern direction and module numbering can be confirmed before bulk production to reduce installation ambiguity.
For this model, digital path accuracy is central to the manufacturing method. MDF is machined by professional CNC equipment according to the approved pattern file, then combined with the polyester fiber base. This workflow supports standard repeats as well as project-specific changes to scale, module outline and component spacing.
For the Clover Chain Modular MDF-on-PET Acoustic Wall Panel, the manufacturing review should focus specifically on clover scale, joint thickness, row offset and headboard-specific panel height. These are the variables most likely to change the visual character of this model. Where narrow bridges, small corners or pointed components occur, the drawing should be checked for practical CNC machining and handling before a production quantity is released.
|
Product Name |
Clover Chain Modular MDF-on-PET Acoustic Wall Panel |
|
Core Keyword |
Clover Chain Modular |
|
Construction |
Polyester fiber acoustic substrate + CNC-machined MDF decorative layer |
|
PET Substrate Thickness |
5 mm / 9 mm standard |
|
MDF Thickness |
9 mm standard; other thicknesses customizable |
|

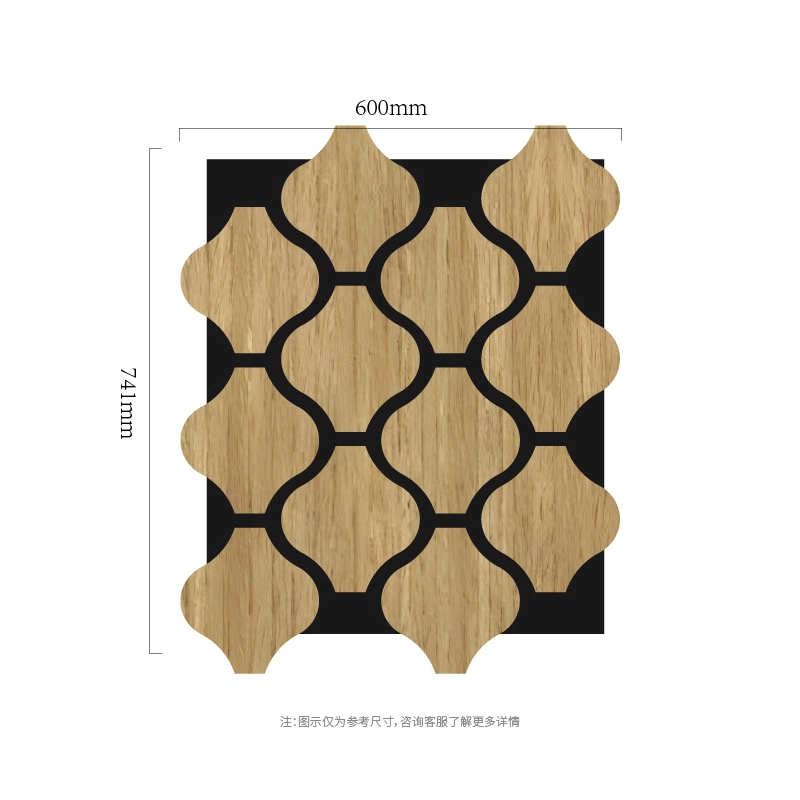

Reference Format |
600 mm nominal width; custom elongated height based on repeat |
|
Finished Size |
Customized according to confirmed pattern drawing and project dimensions |
|
Pattern Process |
Professional CNC engraving / routing / cutting based on designer-approved path |
|
Geometry Options |
Project adjustments may include clover scale, joint thickness, row offset and headboard-specific panel height |
|
MOQ |
400 pieces per design/model |
|
Project Documentation |
CAD/vector file or approved shop drawing recommended before mass production |
|
Performance Data |
Use verified acoustic/fire/environmental certificates where the project specification requires numerical values |
The Clover Chain Modular MDF-on-PET Acoustic Wall Panel is suited to hotel guestrooms, boutique corridors, cafe lounges, wellness rooms and residential-style hospitality spaces. The exposed PET zones should be considered during finish selection. High contrast creates a stronger graphic result; closer MDF and PET tones produce a more subtle surface. The pattern can therefore be tuned for quiet hospitality interiors or more expressive commercial spaces without changing the basic construction.
The most important planning point for this model is the clover chain modular rhythm. Designers should decide whether the pattern will repeat identically, mirror around a centerline, rotate between modules or terminate as an irregular feature. That decision should be reflected in the shop drawing so the final wall looks intentional rather than assembled from unrelated panels.
Use the Clover Chain pattern as a central headboard field, stopping it short of the bedside lighting zones. The rounded geometry softens the visual character of the MDF layer, while the dark PET backing defines each interlocking shape. The result is more decorative than a plain acoustic panel but less rigid than a linear slat composition.
This scenario is a design recommendation rather than a claim of a completed SHIPO project. For website publication, it can later be replaced by a verified customer case, installation photograph, country/market information and measurable project data when those materials are available.
The Clover Chain Modular MDF-on-PET Acoustic Wall Panel can be developed from a standard reference pattern or adapted around project requirements. The primary customization variables for this design are clover scale, joint thickness, row offset and headboard-specific panel height. Standard polyester fiber substrate thicknesses are 5 mm and 9 mm, while the MDF decorative layer is normally 9 mm and can be produced in other thicknesses when required. Finished panel dimensions are not restricted to the reference drawing: SHIPO can review wall dimensions, required module divisions and pattern terminations before confirming the production file. As a China acoustic panel Supplier, Factory and Manufacturer, SHIPO is positioned for bulk B2B orders, with a minimum order quantity of 400 pieces per design.
• Send the wall elevation, target finished size and preferred product reference.
• Confirm the Clover Chain Modular pattern scale and the project-specific variables: clover scale, joint thickness, row offset and headboard-specific panel height.
• Confirm PET substrate thickness (5 or 9 mm), MDF thickness (9 mm standard or custom) and the approved MDF surface/finish sample.
• Approve the CAD/shop drawing and, when necessary, one physical sample before batch manufacturing.
• For directional or multi-module designs, use panel numbers and orientation marks to support site installation.
Yes. A larger repeat reduces the number of joints and gives the wall a calmer appearance. SHIPO can adapt the CAD path to the target wall width.
Yes. The layout can reserve plain zones or terminate the motif at planned vertical lines. Send the switch and lamp positions with the wall drawing before production.
This design is usually strongest as a controlled feature area. For extensive coverage, mixing it with simpler acoustic panels can prevent the room from feeling overly patterned.
Contact SHIPO for samples, drawing review, size customization or a bulk quotation for the Clover Chain Modular MDF-on-PET Acoustic Wall Panel. To receive an accurate proposal, send the target wall dimensions, required quantity, PET substrate thickness, MDF thickness, preferred finish, and any CAD/vector pattern file available. SHIPO can then evaluate the Clover Chain Modular geometry, confirm manufacturable details and prepare the production solution for orders from 400 pieces per design.
