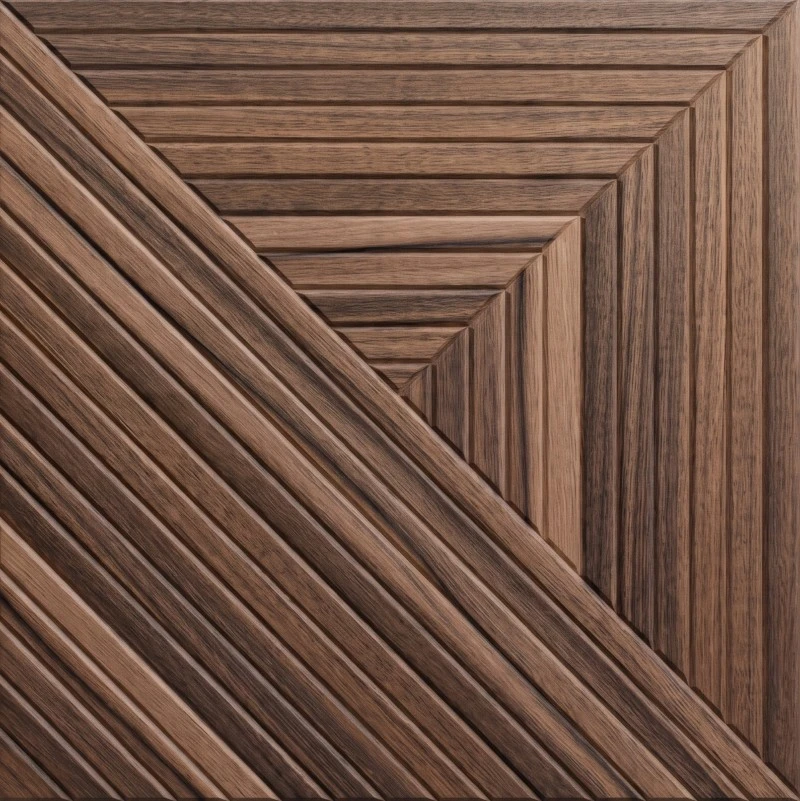

The Wonear 3D UV-Printed Grooved PET Layered Oak Panel is designed around a nested linear composition. Multiple groove directions converge toward framed corners and layered central zones, producing the impression of depth even though the product remains a lightweight polyester fiber acoustic panel.
The surface is carved directly into PET board using CNC equipment. A realistic oak image is then printed over the relief, with the wood grain aligned to each carved path. This alignment reinforces the stepped visual effect and makes the panel appear more like an assembled architectural wood feature than a conventional printed acoustic board.
When several units are installed together, the Wonear 3D UV-Printed Grooved PET Layered Oak Panel can form larger concentric frames, corner transitions or repeated directional fields. It is designed for B2B buyers requiring distinctive project surfaces in education, culture, hospitality and commercial environments.
Nested patterns require accurate control at every turning point. The professional design file defines the groove path, intersection position, margin and print direction. The CNC machine then engraves the surface according to the approved geometry, creating a consistent physical channel across each panel.
The UV print artwork is mapped to the same geometry so the oak grain bends and changes direction with the carved lines. This path-matched printing is a key product feature: it prevents the grain from visually cutting across the groove and improves the three-dimensional reading of the finished surface.
Buyers can request changes to the number of layers, central opening size, border width, groove density and oak color. A sample is recommended whenever a pattern is newly developed or adjusted.
The layered oak design works well where the wall itself is intended to become an architectural focal point. Recommended environments include lecture halls, cultural centers, gallery reception areas, conference rooms, hotel meeting floors and brand presentation spaces.
Panels may be installed in a repeated orientation to create a calm rhythm, mirrored to form large diamonds, or arranged around screens, signs and doors. Because the product is modular, designers can produce a custom wall appearance while contractors continue to work with manageable panel sizes.
The Wonear 3D UV-Printed Grooved PET Layered Oak Panel provides sound absorption through its polyester fiber body. It is most effective when treated as part of an overall acoustic design that considers coverage area, thickness and installation structure.
|
Specification |
Available Option / Description |
|
Primary material |
Polyester fiber acoustic panel (single-material construction) |
|
Available thickness |
5mm / 8mm / 10mm / 12mm |
|
Standard finished size |
600 × 600mm |
|
Optional size |
400 × 600mm |
|
Customized size |
Available after drawing and production review |
|
Surface process |
CNC groove carving + high-resolution UV printing |
|
Pattern capability |
Factory patterns or customer-supplied custom designs |
|
Printing feature |
Wood grain direction follows the carved groove path |
|
Minimum order quantity |
400 pieces per style and confirmed specification |
|
Target customers |
Distributors, importers, contractors, architects, designers and project buyers |
A public cultural center requires a feature wall behind its visitor information desk. The wall must appear warm and dimensional, but the project team also wants to reduce echo in the high-ceiling arrival space. The Wonear 3D UV-Printed Grooved PET Layered Oak Panel is selected in a medium oak finish.
The 600 × 600mm panels are mirrored around the centerline of the desk, creating a large framed composition. The nested grooves visually direct attention toward the information signage. A 10mm PET panel is installed over the prepared wall surface, and the final layout is numbered before shipment to simplify installation.
This reference scenario demonstrates the panel’s suitability for directional public interiors without claiming a specific completed project.
Wonear supports architects, project suppliers and distributors with digital pattern review before production. We can work from a customer sketch, CAD file or visual reference and convert the approved design into coordinated carving and printing data.
Inspection includes groove-turn accuracy, border dimensions, oak-grain direction, print registration, panel size, thickness and batch appearance. For large custom walls, we can discuss panel numbering and packaging by installation sequence.
The Wonear 3D UV-Printed Grooved PET Layered Oak Panel is available from 400 pieces per confirmed style. The product is intended for wholesale import, commercial fit-out and long-term distribution cooperation.
A: Yes. More or fewer layers can be designed, subject to groove width, panel size and machining feasibility.
A: Yes. The focal point can be centered, offset or aligned with a larger wall feature after layout review.
A: Yes. Numbering can be discussed for projects using mirrored or continuous arrangements.
A: 10mm or 12mm is often selected when a thicker acoustic layer is preferred, but final selection should follow the project design.
A: CAD, AI, PDF vector drawings or clear high-resolution references are useful for initial evaluation.
For wholesale pricing, custom pattern development, sample confirmation, distributor cooperation or commercial project supply, contact Wonear with the required design, panel size, thickness, quantity, packing requirements and destination country. The Wonear 3D UV-Printed Grooved PET Layered Oak Panel is manufactured for bulk purchasing, with a standard minimum order quantity of 400 pieces per confirmed style and specification.
