The 3D Cube Column Modular MDF-on-PET Acoustic Wall Panel translates repeating isometric cube faces assembled into a tall open-edged column of geometric modules into a practical decorative acoustic wall system. Its key visual result is a pronounced three-dimensional illusion created with flat CNC-cut MDF pieces over contrasting PET. Instead of relying on a printed surface to create the pattern, the foreground is formed from real MDF components machined by CNC equipment, while the polyester fiber substrate remains visible in the negative spaces. This two-layer relationship gives the wall depth, shadow and material contrast while retaining the acoustic function of the PET backing. This model is best understood as a CNC-defined decorative system rather than a fixed stock tile. Its value comes from the relationship between the cut MDF geometry, the visible polyester fiber background and the way modules are coordinated across a project wall.
• Pattern identity: the 3D Cube Column geometry is immediately distinguishable from standard straight-slat acoustic panels and can be used as a project-specific visual signature.
• CNC repeatability: cube scale, face-color assignment, column width and overall composition height can be adjusted in the CAD path and then reproduced consistently for batch manufacturing.
• Layered appearance: the MDF decorative face creates the foreground, while exposed polyester fiber becomes an intentional background rather than a hidden substrate.
• Dimension flexibility: finished size is determined by the pattern and wall design instead of one fixed stock format, making the series suitable for square, tall, rectangular and irregular modules.
• B2B project workflow: drawings, sample approval, pattern direction and module numbering can be confirmed before bulk production to reduce installation ambiguity.
Production begins with confirmation of the vector/CAD geometry, followed by CNC machining of the MDF decorative layer. The process allows curved, angled and irregular components to be repeated without relying on hand cutting. The finished composition is assembled with the PET acoustic substrate so the exposed background becomes part of the design.
For the 3D Cube Column Modular MDF-on-PET Acoustic Wall Panel, the manufacturing review should focus specifically on cube scale, face-color assignment, column width and overall composition height. These are the variables most likely to change the visual character of this model. Where narrow bridges, small corners or pointed components occur, the drawing should be checked for practical CNC machining and handling before a production quantity is released.
|
Product Name |
3D Cube Column Modular MDF-on-PET Acoustic Wall Panel |
|
Core Keyword |
3D Cube Column |
|
Construction |
Polyester fiber acoustic substrate + CNC-machined MDF decorative layer |
|
PET Substrate Thickness |
5 mm / 9 mm standard |
|
MDF Thickness |
9 mm standard; other thicknesses customizable |
|
Reference Format |

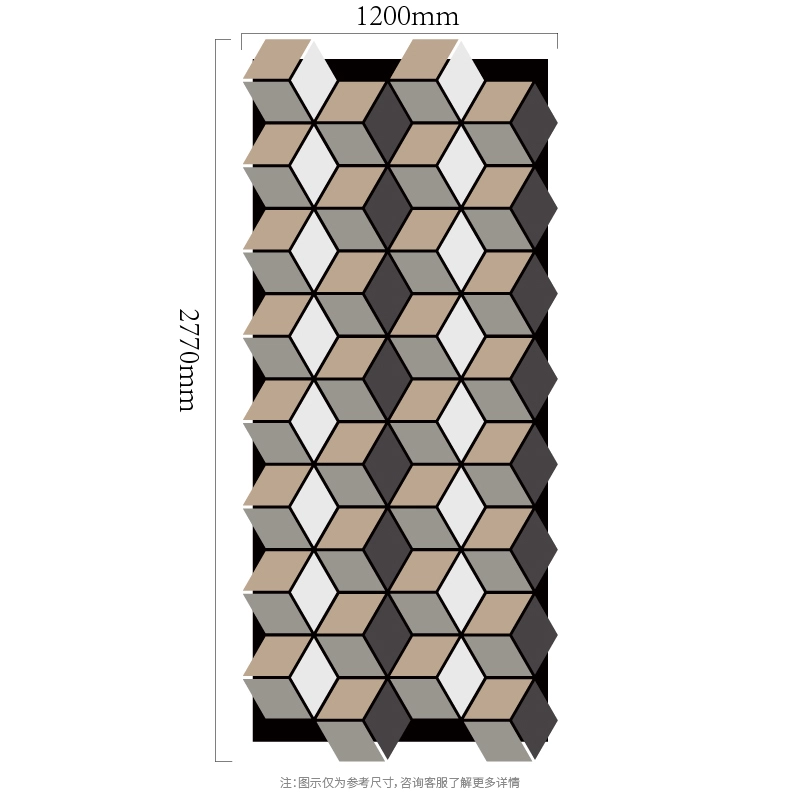

1200 mm reference width; tall modular composition per reference drawing |
|
Finished Size |
Customized according to confirmed pattern drawing and project dimensions |
|
Pattern Process |
Professional CNC engraving / routing / cutting based on designer-approved path |
|
Geometry Options |
Project adjustments may include cube scale, face-color assignment, column width and overall composition height |
|
MOQ |
400 pieces per design/model |
|
Project Documentation |
CAD/vector file or approved shop drawing recommended before mass production |
|
Performance Data |
Use verified acoustic/fire/environmental certificates where the project specification requires numerical values |
The 3D Cube Column Modular MDF-on-PET Acoustic Wall Panel is suited to brand showrooms, exhibition entrances, technology offices, event spaces and double-height lobby accents. The design can be used as a full-wall repeat, a framed acoustic insert or a localized feature panel. Where the pattern is directional, the installation drawing should mark the orientation of every module. This avoids accidental reversals and keeps visual lines continuous across seams.
The most important planning point for this model is the 3d cube column rhythm. Designers should decide whether the pattern will repeat identically, mirror around a centerline, rotate between modules or terminate as an irregular feature. That decision should be reflected in the shop drawing so the final wall looks intentional rather than assembled from unrelated panels.
Position the 3D Cube Column beside an entrance portal or digital screen so the isometric faces appear to project from the wall. Multiple MDF tones can strengthen the cube illusion by assigning light, medium and dark values to different faces. The tall format works especially well where a narrow architectural bay needs more visual presence.
This scenario is a design recommendation rather than a claim of a completed SHIPO project. For website publication, it can later be replaced by a verified customer case, installation photograph, country/market information and measurable project data when those materials are available.
The 3D Cube Column Modular MDF-on-PET Acoustic Wall Panel can be developed from a standard reference pattern or adapted around project requirements. The primary customization variables for this design are cube scale, face-color assignment, column width and overall composition height. Standard polyester fiber substrate thicknesses are 5 mm and 9 mm, while the MDF decorative layer is normally 9 mm and can be produced in other thicknesses when required. Finished panel dimensions are not restricted to the reference drawing: SHIPO can review wall dimensions, required module divisions and pattern terminations before confirming the production file. As a China acoustic panel Supplier, Factory and Manufacturer, SHIPO is positioned for bulk B2B orders, with a minimum order quantity of 400 pieces per design.
• Send the wall elevation, target finished size and preferred product reference.
• Confirm the 3D Cube Column pattern scale and the project-specific variables: cube scale, face-color assignment, column width and overall composition height.
• Confirm PET substrate thickness (5 or 9 mm), MDF thickness (9 mm standard or custom) and the approved MDF surface/finish sample.
• Approve the CAD/shop drawing and, when necessary, one physical sample before batch manufacturing.
• For directional or multi-module designs, use panel numbers and orientation marks to support site installation.
The visual cube effect comes primarily from the geometry and contrasting MDF faces installed over the PET substrate. Any actual build-up depends on the confirmed construction and MDF thickness.
Yes. A three-tone specification can enhance the isometric illusion. The finish mapping should be confirmed with a labeled sample or drawing.
Yes. Large designs can be divided into coordinated modules. Seam locations should be placed along geometric joints so they are less noticeable after installation.
Contact SHIPO for samples, drawing review, size customization or a bulk quotation for the 3D Cube Column Modular MDF-on-PET Acoustic Wall Panel. To receive an accurate proposal, send the target wall dimensions, required quantity, PET substrate thickness, MDF thickness, preferred finish, and any CAD/vector pattern file available. SHIPO can then evaluate the 3D Cube Column geometry, confirm manufacturable details and prepare the production solution for orders from 400 pieces per design.
