The wonear FlowLine Curved Slat PET Acoustic Panel is a decorative acoustic wall system featuring multiple parallel curved lines arranged over a black polyester fiber substrate.
Unlike standard straight wood slat panels, the flowing strip design introduces a softer and more dynamic visual rhythm. The repeated curves guide the eye vertically across the wall, helping large commercial spaces appear taller, more fluid and less rigid.
The light-colored decorative strips contrast clearly with the black acoustic base, creating a layered architectural surface that remains visually recognizable from both short and long viewing distances.
At the same time, the polyester fiber substrate helps absorb reflected sound inside the room. This makes the panel suitable for offices, education spaces, hotel interiors, meeting rooms, exhibition halls, restaurants and other indoor environments where decoration and acoustic comfort are both important.
The wonear FlowLine Curved Slat PET Acoustic Panel is manufactured primarily for overseas distributors, contractors, building-material importers, architects and commercial project purchasers. wonear focuses on factory wholesale and project supply rather than individual retail orders.
The panel consists of a polyester fiber acoustic base and precision-cut MDF decorative strips.
The polyester substrate is available in four standard thicknesses:5mm/8mm/10mm/12mm
The MDF material is cut into continuous curved strip shapes according to the approved design. Wood-grain decorative film is then applied through a controlled heat-press lamination process.
Two surface-covering options are available:Front-surface lamination/Front surface plus two side edges lamination
Three-side lamination is recommended for feature walls viewed from different directions because it gives the decorative strips a more complete wood-grain appearance and reduces the visibility of exposed MDF edges.
Different wood-grain colors, decorative films and surface tones can be selected according to the interior design concept.
The curvature, line density, strip width and spacing can be adjusted according to the required visual effect.
For conventional straight slat panels, wonear commonly provides:25mm or 27mm slat widths/15mm or 23mm spacing
For the wonear FlowLine Curved Slat PET Acoustic Panel, the dimensions are confirmed according to the pattern drawing because the apparent spacing changes along the curved sections.
Buyers may provide a CAD drawing, reference image, total wall dimensions or required pattern scale. Our technical team can evaluate whether the pattern should repeat continuously across several panels.
A tighter curve creates a more active and decorative surface, while a wider curve produces a calmer visual rhythm suitable for large walls.
Available panel widths include 600mm and 1200mm.

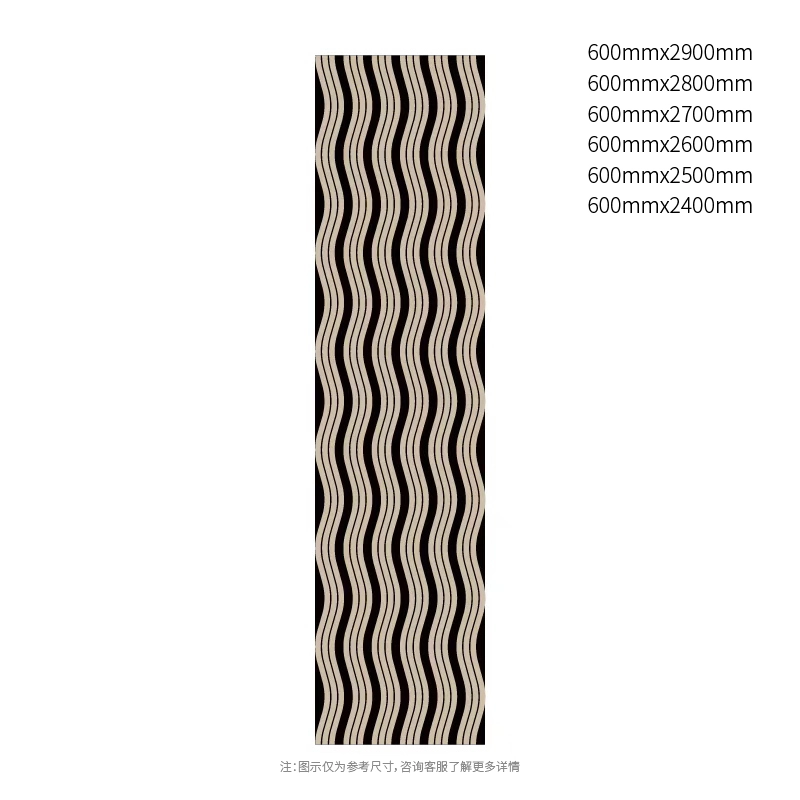

Standard 600mm-wide sizes include:
600 × 2400mm/600 × 2500mm/600 × 2600mm/600 × 2700mm/600 × 2800mm/600 × 2900mm
Common 1200mm-wide sizes include:1200 × 2400mm/1200 × 3000mm
Other dimensions can be evaluated according to raw-material use, pattern continuity, packing restrictions and order quantity.
The minimum order quantity is 100 sheets per confirmed style and specification.
The 5mm polyester fiber substrate provides greater flexibility than the thicker versions. It may be used for selected curved walls, rounded columns and radius-shaped interior structures.
However, the bending performance of the finished panel is also affected by the MDF strip arrangement, decorative shape and installation direction. The required radius should therefore be confirmed through drawings or sample testing before mass production.
The 10mm polyester fiber base produces a more rigid finished panel and is not easily bent. It is mainly recommended for flat walls where better structural stability and panel flatness are required.
The 8mm and 12mm options provide additional choices for different commercial project specifications.
A corporate headquarters project includes a reception area connected to a long internal corridor. The walls are mainly glass, painted plaster and stone, causing noticeable sound reflection during busy working hours.
The designer selects the wonear FlowLine Curved Slat PET Acoustic Panel for the main reception backdrop and selected corridor walls.
The light flowing lines provide visual movement along the circulation route, while the black polyester background coordinates with the dark metal trims and office furniture.
Before production, the contractor provides the total wall dimensions. The pattern is divided into numbered panel modules so the curves can continue logically across adjoining panels.
The polyester fiber substrate helps reduce excessive reflected sound in the reception and communication areas while maintaining a modern architectural appearance.
This is a reference application scenario intended to demonstrate how the product can be specified in a commercial project.
wonear is a direct acoustic wall panel manufacturer with production capabilities covering MDF cutting, decorative film lamination, substrate processing, panel assembly, inspection and export packing.
Quality-control items for this product include:Polyester fiber thickness
Finished panel dimensions/Curved strip accuracy/Pattern continuity/Strip alignment/Decorative film adhesion/Side-edge covering quality/Surface cleanliness/Batch color consistency/Export packing protection
For customized designs, a physical sample can be prepared before bulk production. Buyers should confirm the pattern, decorative color, substrate thickness and finished dimensions based on the sample.
The wonear FlowLine Curved Slat PET Acoustic Panel can also be supplied with customized labels, carton marks and selected packaging solutions for distributors and private-label customers.
wonear cooperates directly with professional B2B purchasers, including acoustic product distributors, construction contractors, project suppliers, architects and interior design companies.
Our factory can provide:Pattern development according to drawings/Wood-grain film customization/Different base thicknesses/Adjustable panel sizes/OEM and private-label cooperation/Sample preparation/Production progress communication/Export document support/Palletized packing and container loading
We have experience handling international orders and can communicate with freight forwarders and purchasing teams regarding packing, loading and export requirements.
Yes. The wave amplitude, repetition frequency and strip density can be adjusted according to the approved drawing and production feasibility.
Yes. Buyers should provide the total wall dimensions so the panel division and installation sequence can be planned before production.
The 5mm polyester fiber version provides greater flexibility, but the finished bending radius must be tested because the MDF strips also influence flexibility.
Yes. Light wood, walnut, smoked oak, grey wood and other decorative finishes can be evaluated. Physical sample confirmation is recommended.
Our primary business is B2B wholesale and commercial project supply. The standard MOQ is 100 sheets per confirmed specification.
For distributor pricing, custom pattern development, project samples or bulk-order quotations, send wonear the required dimensions, pattern reference, substrate thickness, finish, quantity and destination country.
