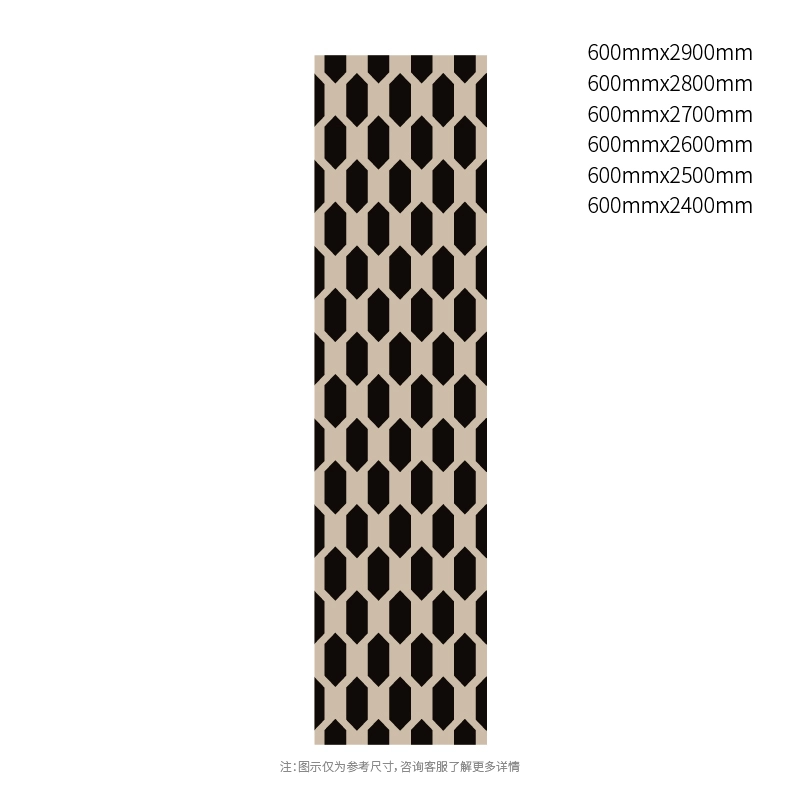

The SHIPO HexaGrid Honeycomb PET Acoustic Wall Panel features a repeated elongated hexagonal pattern arranged over a black polyester fiber substrate.
The geometric structure creates a strong contrast between the decorative MDF elements and the exposed acoustic base. When multiple panels are installed together, the pattern develops into a large modular grid suitable for prominent commercial walls.
The hexagonal composition works well in modern offices, auditoriums, sports facilities, shopping centers, brand showrooms, education spaces and public reception areas.
Compared with simple parallel slats, the honeycomb pattern gives designers a clearer visual theme. It can be used to define a meeting zone, reception wall, stage background, corridor or branded interior area.
The polyester fiber background helps absorb reflected sound inside the room, while the decorative grid prevents the acoustic treatment from appearing overly plain.
The SHIPO HexaGrid Honeycomb PET Acoustic Wall Panel is intended for professional buyers who require both design customization and stable factory production.
The acoustic substrate is made from polyester fiber material and is offered in 5mm, 8mm, 10mm and 12mm thicknesses.
The visible grid is formed from precision-cut MDF decorative elements. Wood-grain or other approved decorative film is laminated to the MDF through heat pressing.
Depending on the desired visual effect, the film can cover the front surface or the front plus two side faces.
For the illustrated light geometric style, a lighter wood or neutral decorative finish can be combined with a black base to create high contrast. Darker finishes can also be used for a more restrained commercial appearance.
The width of the geometric line, the opening size and the repeat interval can be customized after the buyer confirms the drawing.
Geometric products require accurate pattern planning, particularly when installed across a wide wall.
Before production, SHIPO can review:
Total installation width and height/Panel division/Pattern starting and ending position/Continuity between panels/Direction of installation/Required border treatment/Openings for doors, screens or equipment
For large project orders, an elevation drawing is recommended. This allows the pattern to be divided into suitable panel modules before manufacturing.
Standard straight-panel specifications use 25mm or 27mm decorative strips and 15mm or 23mm gaps. The honeycomb version is produced according to the confirmed geometric dimensions rather than a single fixed spacing.
Available formats include:600 × 2400mm/600 × 2500mm/600 × 2600mm/600 × 2700mm/600 × 2800mm/600 × 2900mm/1200 × 2400mm/1200 × 3000mm
Customized dimensions can be reviewed according to pattern continuity, transport limits and order volume.
The standard minimum order quantity is 100 sheets for one approved design and specification.
The 5mm polyester fiber base has greater flexibility and may be suitable for selected non-flat installation areas after testing.
However, because the honeycomb pattern contains multiple connected decorative elements, the completed panel should not be assumed to bend in the same way as a plain polyester board. The actual bending performance must be verified using the requested pattern and radius.
The 10mm base provides a more stable panel for flat walls and is not easily curved.
For large geometric feature walls, rigid flat installation is generally recommended to maintain pattern alignment.
A municipal multi-purpose auditorium is used for lectures, performances, meetings and public events. The rear wall requires a decorative treatment that remains visible from a long viewing distance.
The designer selects the SHIPO HexaGrid Honeycomb PET Acoustic Wall Panel because the elongated hexagonal pattern is large enough to remain recognizable across the auditorium.
A light decorative finish is combined with the black polyester base to create a high-contrast geometric surface. The panels are divided according to the total wall dimensions, and the production sequence is marked to support installation.
The polyester fiber layer helps reduce reflected sound from the rear wall, while the honeycomb design creates a more distinctive background than a conventional plain acoustic board.
SHIPO supplies decorative acoustic panels to overseas B2B customers, including importers, building-material distributors, contractors, architects and project procurement companies.
Services for the SHIPO HexaGrid Honeycomb PET Acoustic Wall Panel include:
Geometric pattern customization/Sample development/Polyester thickness selection/Film and color matching
Panel-size adjustment/OEM branding evaluation/Packing-mark customization/Export documents/Sea-freight packing and loading support
Before shipment, factory inspections focus on geometric alignment, surface lamination, MDF edge condition, panel size, substrate thickness, batch consistency and packing protection.
The SHIPO HexaGrid Honeycomb PET Acoustic Wall Panel is supplied in bulk quantities. Our production model is designed for long-term distribution, project orders and repeat purchasing rather than individual retail sales.
Yes. The grid scale, decorative line width and opening dimensions can be adjusted according to the approved drawing.
Selected custom elements may be evaluated as part of the overall pattern, subject to manufacturing feasibility, minimum quantity and drawing confirmation.
Yes. Large wall layouts can be divided into numbered panel modules. The contractor should provide the full elevation dimensions before production.
Acoustic performance depends on substrate thickness, installation structure, air cavity and testing method. Specific acoustic reports should only be quoted after the corresponding tested construction has been confirmed.
Please provide the panel size, total quantity, polyester thickness, decorative finish, pattern drawing, packing requirements and destination port or country.
For distributor pricing, project drawings, sample development or container-order cooperation, contact SHIPO with your required specifications. Our factory will review the design and provide a production-based quotation.
