The wonear StepGrid Geometric PET Acoustic Wall Panel features a repeated stepped-line pattern formed by precision-cut MDF decorative strips.
Instead of smooth curves, the lines change direction through controlled angular transitions. The repeated geometric movement creates a strong sense of order, technology and architectural rhythm.
The design is particularly suitable for modepanies, educational buildings, exhibition spaces, sports facilities, meeting centers and public commercial interiors.
The decorative pattern is presented over a black polyester fiber substrate. The contrast between the light geometric strips and the dark background allows the pattern to remain visible across large walls.
The wonear StepGrid Geometric PET Acoustic Wall Panel can be used as a full-height wall finish, reception backdrop, corridor feature, presentation-area background or selected ceiling treatment.
The black substrate is made from polyester fiber acoustic material.
Its porous structure helps absorb part of the reflected sound generated within the room, reducing excessive reverberation and improving general acoustic comfort.
Available thicknesses include:5mm/8mm/10mm/12mm
The 5mm version offers greater flexibility and may be considered for selected curved structures after testing.
The 10mm and 12mm bases provide greater rigidity and are generally more suitable for flat commercial walls where pattern alignment and panel stability are important.
The product is designed to provide sound absorption rather than complete sound isolation between separate rooms.
The upper decorative material is MDF cut into an angular stepped profile.
Wood-grain or selected decorative film is attached through heat-press lamination. The surface may be covered on the front only or on the front and two side edges.
Three-side coverage is useful for geometric products because the frequent directional changes make the side faces more visible.
The pattern can be customized according to the project design. Adjustable features include:Decorative strip width/Length of each straight section/Angle transition/Horizontal repetition interval/Vertical repetition/Pattern density/Wood-grain color/Border treatment
For standard straight products, common strip widths are 25mm and 27mm, while regular spacing options are 15mm and 23mm. The stepped design is confirmed separately according to the final drawing.
The wonear StepGrid Geometric PET Acoustic Wall Panel is available in both narrow and large panel formats.

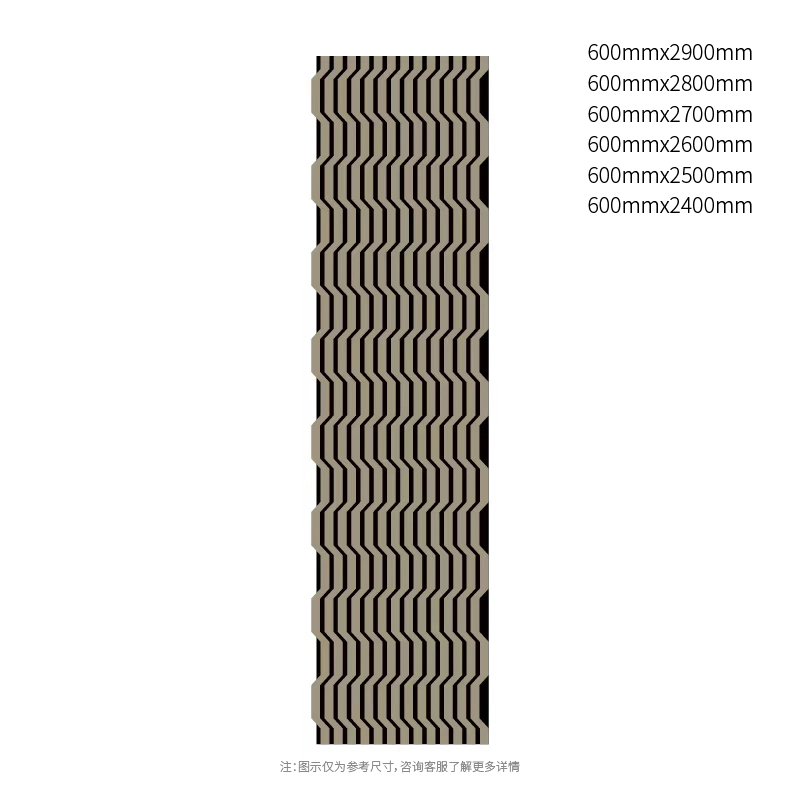

Standard 600mm-wide options include heights from 2400mm to 2900mm.
Common large-panel sizes include:1200 × 2400mm/1200 × 3000mm
Special dimensions can be reviewed according to order quantity, pattern division, transportation and installation requirements.
The minimum order quantity is 100 sheets for each confirmed specification.
The stepped pattern is highly dependent on accurate alignment.
For large feature walls, the buyer should provide a complete elevation drawing showing:
Total wall width and height/Door and window positions/Electrical outlets and screens/Panel joint locations/Pattern starting point/Required border dimensions
wonear can then divide the design into suitable modules.
Where necessary, the panels can be numbered according to the installation order. This helps the contractor maintain the intended pattern continuity on site.
A technology company is developing a staff training center containing classrooms, demonstration rooms and an open presentation area.
The interior designer requires a wall finish that reflects the company’s modern brand positioning while also improving comfort in rooms used for speech and group discussion.
The wonear StepGrid Geometric PET Acoustic Wall Panel is selected for the presentation wall and the corridor connecting the training rooms.
The angular pattern creates a visual connection with digital graphics and circuit-inspired brand elements. The black polyester base coordinates with the audiovisual equipment, while the lighter decorative strips prevent the interior from appearing too dark.
A rigid 10mm base is selected for the flat walls. The panels are numbered according to the installation plan so that the stepped lines remain continuous across the full wall.
The acoustic substrate helps reduce sound reflection caused by the hard floor, glass partitions and presentation equipment.
wonear controls the main production processes for decorative acoustic panels, including pattern cutting, film lamination, polyester substrate processing, assembly and packaging.
This allows our factory to communicate directly with B2B buyers about dimensions, tolerances, finish selection and production scheduling.
Quality-control items include:Accuracy of angular cuts/Pattern repetition consistency/MDF strip dimensions/Spacing between components/Lamination adhesion/Edge quality/Panel flatness/Substrate thickness/Batch color consistency/Packing protection
The wonear StepGrid Geometric PET Acoustic Wall Panel is intended for importers, distributors, contractors and project buyers. It is not positioned as a single-piece retail item.
For international wholesale customers, wonear can discuss:OEM labels/Customized carton marks/Product code systems/Installation-sequence labels/Palletized export packing/Container quantity planning/Export documentation/Sample shipment/Repeat-order production
Available export certificates, test reports and supporting documents can be provided according to the actual product configuration and destination-market requirements.
Yes. The length and direction of each section can be adjusted after the drawing is reviewed.
Yes. The wall layout should include the exact screen dimensions so the pattern and panel joints can be planned around the equipment.
The 10mm base is commonly selected when higher rigidity is required. The final choice should follow the project specification and installation method.
Yes. Geometric arrangements can be evaluated according to reference artwork, provided the design can be manufactured efficiently and does not violate third-party rights.
The standard minimum order quantity is 100 sheets per confirmed style and specification.
Provide the drawing, required panel dimensions, polyester thickness, finish, quantity and destination. wonear will evaluate the pattern division, sample requirements and bulk production price.
