Diamond Weave Decorative Acoustic Wall Panel

A Decorative Lattice with Acoustic Support

The wonear Diamond Weave Decorative Acoustic Wall Panel uses repeated curved lines to form a vertically connected diamond pattern.

Unlike conventional parallel slats, the decorative elements move toward and away from each other, producing a woven appearance across the panel surface. The pattern creates recognizable visual identity while maintaining sufficient black background between the decorative components.

This balance between decorative material and exposed polyester fiber is important. The MDF elements provide architectural detail, while the visible polyester substrate remains part of the acoustic surface.

The design can be used as a feature wall in restaurants, hotel corridors, retail stores, meeting spaces, exhibition areas and cultural interiors.

Several panels can be installed in sequence to extend the diamond rhythm across a larger surface.

The wonear Diamond Weave Decorative Acoustic Wall Panel is especially suitable for commercial projects where a standard straight acoustic panel would appear too simple or too similar to commonly available products.

Construction and Decorative Finish

The panel is produced using a polyester fiber base and precision-cut MDF decorative components.

The polyester layer is available in:5mm/8mm/10mm/12mm

MDF elements are cut according to the approved lattice design and covered with selected decorative film through heat pressing.

The film may be applied to the front surface only or extended across the front and two side faces.

For a diamond pattern, side-edge finishing is visually important because the decorative lines are viewed from multiple angles. Three-side film covering can provide a more consistent result in spaces where visitors walk close to the wall.

The wood-grain finish can be changed to coordinate with the project palette. Natural brown, walnut, grey wood, black wood and customized decorative colors can be evaluated.

Pattern Scale and Panel Proportion

The size of each diamond influences how the panel is perceived.

A smaller pattern produces a denser and more detailed surface, while a larger diamond creates a stronger architectural statement when viewed from a distance.

Pattern width, vertical repetition and line thickness can be adjusted according to:

Ceiling height/Wall length/Viewing distance/Project design style/Required panel format/Material utilization

Standard straight acoustic panels commonly use 25mm or 27mm decorative widths and 15mm or 23mm gaps. For the diamond design, the dimensions are confirmed from the final drawing because the spacing changes throughout the interlaced pattern.

Size Options and MOQ

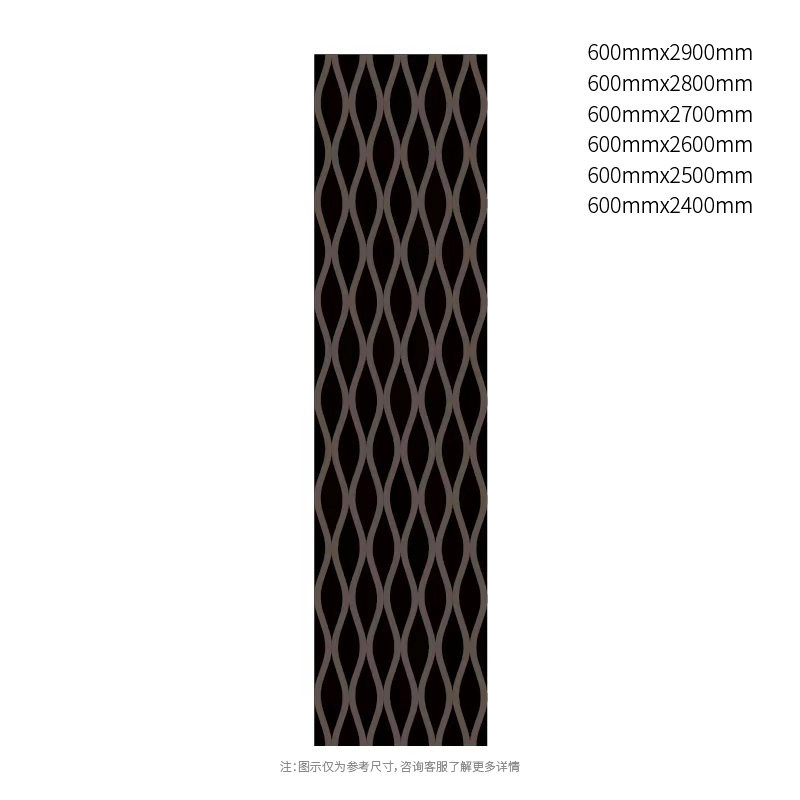

Standard production formats include 600mm and 1200mm widths.

The 600mm panels can be supplied in 2400mm, 2500mm, 2600mm, 2700mm, 2800mm and 2900mm heights.

Common large formats include 1200 × 2400mm and 1200 × 3000mm.

Special sizes and pattern proportions are reviewed individually.

The standard minimum order quantity is 100 sheets per approved style and specification.

Reference Application Scenario: Restaurant and Private Dining Area

A restaurant project requires a decorative wall system for the main dining room and several private rooms. The interior uses stone flooring, metal ceiling elements and large glass partitions, creating strong sound reflection during busy service periods.

The designer selects the wonear Diamond Weave Decorative Acoustic Wall Panel for the entrance wall and private dining areas.

A dark brown wood-grain finish is used to match the tables and lighting. The repeated diamond shape provides a distinctive backdrop without relying on printed graphics or excessive decoration.

The polyester fiber base helps control part of the reflected conversation noise, while the decorative lattice gives the space a recognizable visual theme.

Different panel heights are selected for the main dining area and corridor, but the same pattern and film are maintained throughout the project.

Why Commercial Buyers Work with wonear

wonear supports the product-development requirements of distributors and project contractors.

Before manufacturing the wonear Diamond Weave Decorative Acoustic Wall Panel, our team can review the drawing, confirm the pattern repeat and prepare a physical sample.

Factory cooperation may include:

Pattern adjustment/Film color selection/Substrate thickness selection/Customized dimensions/Panel coding/Private labels/Carton marks/Palletized export packing/Container loading coordination

Quality inspection focuses on pattern symmetry, MDF element position, lamination quality, polyester base condition and consistency between panels.

We do not position this product as an individual retail wall decoration. It is developed for B2B customers requiring project quantities, repeat supply or distribution cooperation.

FAQ

Q1: Can the diamond size be enlarged?

Yes. The scale of the pattern can be adjusted according to the wall dimensions and viewing distance.

Q2: Can the pattern be produced in a solid color instead of wood grain?

Different decorative films can be evaluated. Buyers should provide a physical color sample or recognized color reference where possible.

Q3: Which substrate is recommended for a tall flat wall?

The 10mm polyester base is commonly selected when greater rigidity is required. Final selection should also consider the installation system and project specification.

Q4: Can the pattern be aligned across adjoining panels?

Yes. The panel layout and installation direction should be confirmed before production.

Q5: Do you sell one or two panels to homeowners?

Our main business is factory wholesale and commercial project supply. The standard MOQ is 100 sheets per specification.

Request a Project Quotation

Send the total wall size, preferred diamond scale, panel dimensions, finish, polyester thickness and purchasing quantity to wonear for factory evaluation.
